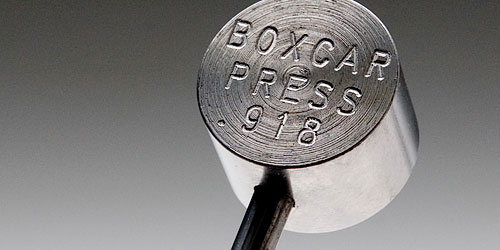

If you don't have one, you should. Roller gauges are indispensable tools that help you accurately measure the height of your rollers so your press can produce the crispest printing. Our Boxcar roller gauge is precision ground to type high, and in addition to being functional, it’s also very fashionable. Exclusive, made in the USA.
How do I use my roller gauge?
When your rollers are positioned correctly, your printing will look beautifully crisp. This is because correctly positioned rollers deposit a thin film of ink onto the surface of your printing plate (without squeezing ink over the plate’s edges). But if your rollers aren't positioned at the right height, your printing will have a halo effect: dark around the edges and/or chunkier/blotchier than it should be. If you ever notice ink on the back of your polymer plate or on your base -- it's a roller gauge emergency! Adjust your rollers now! Here’s how.
Step 1. While your press is inked up, remove the chase (on platen presses) or the base (on a Vandercook).
Step 2. We recommend checking the roller height in the four corners of the press bed. We’ll start in the upper right hand corner. Engage the form rollers and position them over the upper right corner of the bed.
Step 3. You will be pulling a stripe of ink on the round surface of the roller gauge. Pull the gauge underneath the form rollers so that a stripe of ink is transferred to the rounded surface of the gauge’s cylinder. Measure the stripe of the ink: you want your ink stripe to measure 3/32”. If the strip of ink is less than 1/16”, you’ll have difficulty consistently inking your plate (some areas will appear too light, and some areas will appear too dark). If your strip of ink is wider than 3/32”, your rollers put too much pressure on your plate and cause your printing to be chunky/blurry.
Step 4: On a platen press, to adjust the height of your form rollers: add tape to the rails that the roller trucks ride on. You may have to add several layers of tape. Scotch or masking tape is frequently used for this. If you’re using a press other than a platen press, consult your manual as to how to raise your form rollers.
Step 5: Repeat steps three and four in each corner of your press bed.
Step 6: When your rollers are positioned correctly, you should pull identical 3/32” stripes of ink from the four corners of the press bed, and your printing should be both crisp and beautiful!
If you continue to notice inconsistencies in your inking after adjusting your roller height correctly, you may need to purchase new rollers and, if using a platen press, roller trucks as well.
